"Production Switchers by Guramex"

Broadster – new line of broadcast production switchers from “GURAMEX” company, offering universal solution for most of the tasks of the broadcast market.

Each of the model from the given series has ergonomic compact design with intuitive interface that makes operation easier and also provides high reliability during broadcasting.
At the same time a functional capability corresponds to its “large” and more expensive analogues, presented on market. Broadster maximally saves space and is the best solution as for various size studios as well for OB-Vans that suffer problems connected with lack of operation space.

Production switcher Broadster GVM-1615 consists of two parts:

- Main Unit GVM-2400H;

- Control Panel GVM-1615c.

It has unique features:

Operates as with digital as well with analogue signals. Using Auto Detection GVM1615 identifies type of incoming video signal, and frame synchronizers - built in each input - provide their synchronization.

ME Plus™ – ground breaking function, that doubles production cabilities. With a simple push of a button you turn 1.5ME production switcher into 2.5ME device.

Picture in Picture function abilities are expanded in the new switcher. You are able to work with more number of windows for developing the combined image. In GVM1615 function allows overlay on output signal up to 5 scaled windows and display combinations without use of key channel!

Enhanced integrated 2 channel Multiviewer solution and built in wave form scope will be great help while keeping track of all signal sources production switcher operates with.

Since Broadster is a solution, corresponding to the broadcast market, first of all, Guramex took care of that it would operate stably without interruptions. Equipped with parts of the leading producers Broadster will operate 24/7 during many years.

You will not have to choose compactness on the expense of less functionality. We are so sure in reliability of our product that we provide 5 years warranty.

	Inputs/Outputs

Broadster GVM-1615 is featured with up to 16 (up to 24) HD/SD-SDI inputs with autodetection and frame synchronizer. Modular architecture allows changing configuration according user priorities - one can choose 8,12 or 16 input assembling for GVM-1615. Dedicated Quad screen output is represented on each Input Card. Along with that, GVM-1615 has 8 free assignable HD/SD-SDI outputs.

	Auto Detection

Each input of Broadster GVM-1615 automatically indentifies the type of signal its dealing with without any additional settings or equipment.

	Frame Synchronizers

Production switcher is equipped with frame synchronizers at all inputs that allows mixing of any non-synchronous signals smoothly without interruptions, without use of additional external synchronization.

	Internal / External synchronization mode

Production switcher can operate in both external/internal synchronization mode. In external synchronization mode the generator is carried out from the input reference signal.

	ME Plus™

ME Plus™ – the newest development of Guramex – increases your production capabilities by creating additional ME, thus transforming Broadster GVM-1615 into production switcher with 2.5 ME possibilities and spirit!

With ME Plus™ you gain:

Extra ME production possibility
Extra 2 Full-featured Keyers

Combined signal, created in ME Plus™ mode, can be used as an independent internal source in multi-line production. At the same time it can be delegated to auxiliary output and used as an independent program output of production switcher.

		Keyers

The switcher provides wide opportunities for keying :

4 independent Full-featured key channels
2 Full-featured DSK channels

Unique Chroma-key, Luma-key, External-Key and Preset Pattern are included in switcher basic configuration.

Moreover each of the scaled pictures from 5 channel PiP can be used as a key fill source.

For each KEY FILL source can be selected own keying method and matched background. Such solution gives you flexibility andallows quickly switch between the prepared KEY compositions.

		Picture in Picture

Outstanding for small production switcher Picture-in-Picture performance.

Create combined image with up to 5 scaled pictures and background with possibility of Dynamic Transition of combined images. The pictures can be moved, resized, repositioned, cropped and given colored border. PiP can be used as an additional source without occupying DVE and keying channels. At the same time, in case of need, each of scaled pictures can be used as fill source for keying.

Up to 16 state of PiP function can be saved and delegated to buttons of “One Touch Section”. Single push of button provides transition between PIP states with defined duration.

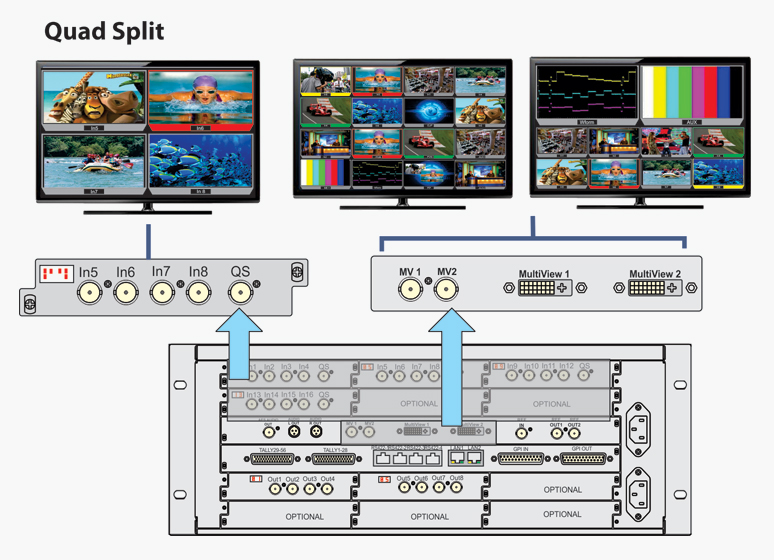

					Multi-Viewer and Quad Spilt outputs

Fully integrated, 2 channel internal solution for the multi-screen image is at your service.
Multi-Viewer allows you to display up to 12 video streams on a single screen in different modes.

The output signal has a resolution of 1920x1080 and is displayed via DVI/HDMI and HD-SDI outputs.

Each video stream has its own audiometer, UMD and plenty of other markers.
The source can be any external video signal, as well as master-channel, or any other internally formed signal.

Dedicated Quad Split (QS) output is represented on each input module.
All 4 inputs can be displayed on a single screen with UMD and Tally indication

			Integrated Waveform Analyzer

Due to built in waveform scope there is an opportunity to display parameters of any video signal source.

		Animated logotype Generator

Isolated, independent channel for displaying Animated Logotype. Supports most popular - AVI video format. Simply upload the picture and drag it into right place on the screen.

		Internal Video Clip Storage

You may upload own designed graphic wipes, TV headband or background clips to the GVM-1615's Dual-channel nonvolatile video storage.
Each channel can store about 96 slides and clips with total duration up to 5 min (25frame/sec).

		Super Wipe

Along with standard cut, mix and wipe transitions you can enjoy with your own designed creative transitions, combined with graphic and audio. Up to 96 Super Wipe can be stored in the separate internal storage with total duration up to 5 min.

		Event Memory

Created to allow each user to save his frequently used switcher configuration, Event Memory memorizes up to 1000 states, of which 16 can be assigned to hot recall buttons in “One Touch Section”.

		Audio Processing

Audio Control for Inputs

Up to eight channels of audio may be extracted from each input HD/SD-SDI video signal.
For each input you can easily :
- select audio couple which will be used for further processing inside switcher.
- adjust audio level.

Audio Control for Outputs

Two audio buses are formed inside switcher and can be freely assigned to AUX outputs with audio level control.

Audio Outputs on CPU Module

Production switcher has Analog ( balanced stereo), digital (AES –EBU) and 2 x SDI outputs for audio tracking of graphic transitions ( SuperWipe). Can be assigned for different purposes.

		Macros Function

Allows to create editable user macros. Macro is a sequence of states and transitions that can be played automatically or step by step mode. Moreover through macros can be provided control via GPI.

		Robotic Camera Control

Robotic Camera Control provides possibility to control the broadcasting process independently, by changing studio cameras position in certain range.
Cameras are simply controlled and adjusted by joystick. Zooming is also provided.
Any adjustment can be stored in Broadster's memory and easily recalled by pushing single button.

		Universal Tally Indication

GVM-1615 provides flexibly assignable Tally indication.
Tally indication settings are made easily through the menu with an intuitive interface.
Also there are different modes of Tally indication displaying on Multiviwer.

		Software Control

Assistant Software Control allows you to control Main Unit and perform any necessary action directly from your PC.

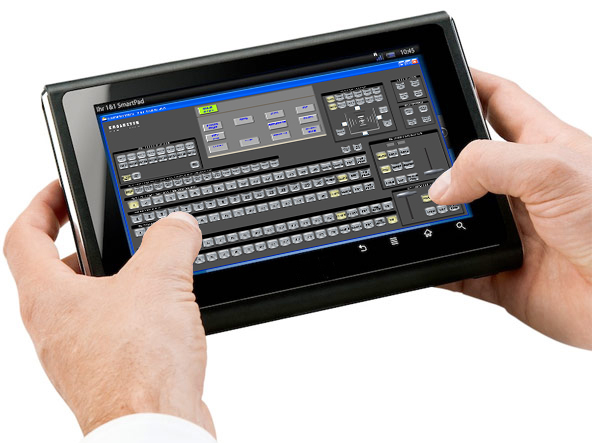

You've got one more ace up your sleeve - Broadster Multi Platform! Turn your Android Tab or Smartphone into a Live Production Control Panel. Broadster Multi Platform gives you the freedom and flexibility to manage your work from many popular devices.

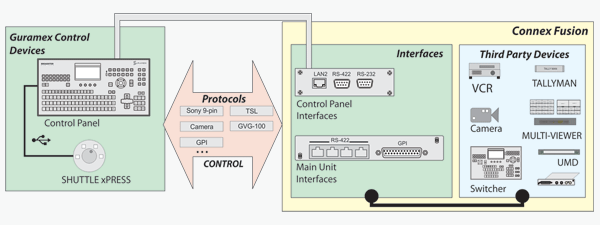

		External Device Control

Switchers enable integrated control over various external devices like VTR, TSL, Servers, Routing Systems and UMD through LAN, RS422 and GPI interfaces.

GVM-1615 allows to choose the configuration (number and type of production switchers Input/Output Cards) that precisely suits customer needs without wasting money. Modular architecture with distributed processing is provided to guarantee survivability of the system.

All Input Cards are interchangeable with each other, the same is provided for the Output Cards. Failure of any card only leads to loss of function or a certain lack of comfort. Damage of any Input/Output Card will not cause the failure of the whole system.

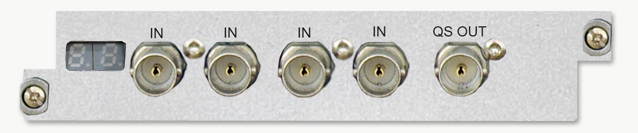

	Input Card

It's possible to complete up to 4 Input Cards configuration for GVM-1615

On the each Input Card are represented 4 HD/SD-SDI inputs,dedicated Quad Split (QS) output and indicator.

Indicator Shows:
- input number
- presence of input signals
- format of input signals

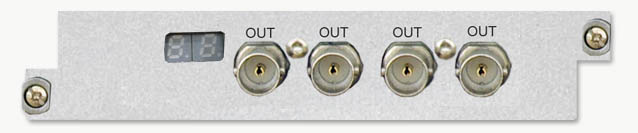

	Output Card

Up to 2 Output Cards can be installed for GVM-1615.

Each Output Card has 4 free assignable HD/SD-SDI outputs and indicator.

Indicator Shows:
- output number
- presence of output signals
- format of output signals

	Interface Module

Interface module contains:
- 20 Tallies (F)
- 4 x RS-422 ports
- 2 x RJ45 LAN ports
- 12 GPI Inputs/12 GPI Outputs

	Main Processing Module

Main Processing Module contains:
- Analog ( balanced stereo) and digital (AES –EBU)Audio outputs
- 2 HD/SD-SDI outputs assignable to : PGM, PVW, MV1, MV2

- 2 DVI-D/HDMI outputs assignable to : PGM, PVW, MV1, MV2

- REF input and outputs

	Audio Module

provides input and output of the balanced audio signal. GURAMEX Audio Module is intended to arrange audio signal processing, embedding and de-embedding operations inside Broadster without additional equipment.

	Removable Video Recorder Storage

This is an optional function representing a way of recording of input and output signals. Removable Video Recorder Storage is intended for storing information and can be easily connected to internal studio equipment for playback.

Number of ME Including ME Plus™ function	2.5 ME
__________________________________________________________________________________________
Inputs	16 HD/SD-SDI (up to 24) inputs BNC 75 Ohm x 16 ____________________________
	Frame synchronizer on each input Signal type Auto-Detection
__________________________________________________________________________________________
Outputs	8(up to16) HD/SD-SDI outputs Free assignable BNC 75 Ohm x 16
__________________________________________________________________________________________
Keyers	8 Full-featuredkeyers (2 of ME, 2 of ME Plus™, 4 of DSK)
	Logo Inserter
__________________________________________________________________________________________
Multi-Viewer	2 channel Integrated Multi-Viewer 2 DVI-D/HDMI outputs and 2 BNC 75 Ohm x 2 outputs ____________________________
	4 (up to 6) Quad Screen outputs: BNC 75 Ohm Quad Split output on each input board ____________________________
	Resolution: 1920x1080
__________________________________________________________________________________________
Audio Outputs	Analog ( balance and stereo) output Digital AES-EBU AUDIO output
__________________________________________________________________________________________
Picture in Picture	5 channels and background
__________________________________________________________________________________________
DVE Effects	5 channels 2D DVE 4 channels 2.5D DVE 2 channels 3D DVE
__________________________________________________________________________________________
Animated Logo Generator	1 channel
__________________________________________________________________________________________
Internal Video Clip Storage	2 channel
__________________________________________________________________________________________
ME Plus™
__________________________________________________________________________________________
Super Wipe
__________________________________________________________________________________________
Internal/External Synchronization Mode
__________________________________________________________________________________________
Redundant Power Supply
__________________________________________________________________________________________
Macros
__________________________________________________________________________________________
Event Memory	Up to 1000 events
__________________________________________________________________________________________
Robotic Camera control
__________________________________________________________________________________________
Audio Processing
__________________________________________________________________________________________
Removable Video Recorder Storage (optional)	Soon
__________________________________________________________________________________________
Audio Input/Output (optional)	Soon
__________________________________________________________________________________________
Interfaces	4 RS-422; RJ-45 connectors
	2 RJ-45 Ethernet Ports: 100Base-TX/100Base-T
	12 GPI IN : 25pin D-sub male
	12 GPI OUT: 25pin D-sub female
	Tally out:2x44-pin D-sub (female), 56 relay contacts
__________________________________________________________________________________________
Video Format	1080/50i, 576/50i
__________________________________________________________________________________________
Aspect Ratio	4:3/16:9
__________________________________________________________________________________________
I/O Signal Processing	4:2:2
__________________________________________________________________________________________
Internal Signal Processing	4:4:4:4 20-bit
__________________________________________________________________________________________
Genlock Input	SD BB: PAL 0.45Vp-p BNC 75 Ohm x 1, loop-through when Main Unit is switched off. ____________________________
	HD BB:0,45 Vp-p or Tri-level Sunc:0,6 Vp-p 75 OM BNCx1, loop-through (Terminate with 75 OM terminator,if unused.)
__________________________________________________________________________________________
Genlock Output	SD BB: PAL 0.45Vp-p BNC 75 Ohm x 2, loop-through when Main Unit is switched off. ____________________________
	HD BB:0,45 Vp-p or Tri-level Sunc:0,6 Vp-p 75 OM BNCx2, loop-through (Terminate with 75 OM terminator,if unused.)
__________________________________________________________________________________________
I/O delay	Up to 1 frame when Frame Synchronization is used. Up to 2 frames when Frame Synchronization and DVE are used.
__________________________________________________________________________________________
Temperature	5°C to 40°C
__________________________________________________________________________________________
Humidity	20% to 90% (no condensation)
__________________________________________________________________________________________
Power	110VAC to 240VAC ± 10%, 47/63Hz
__________________________________________________________________________________________
Consumption	Main Unit: 220W max. ____________________________
	Control Unit: 130W max.
__________________________________________________________________________________________
Dimensions	Main Unit: 485mm(W)x 430mm(D) x 4U (H) ____________________________
	Control Unit: 570mm(W)x 385mm(D) x 105mm(H)
__________________________________________________________________________________________
Weight	Main Unit: 14 kg ____________________________
	Control Unit: 7kg

Installation Dimensions

X_Media_HD for Clip, Super Wipe, Logo writing

X_Multiview for Multiviewer setting names

Assistant Software Control
